MAXIROLL GREENLINE LIFT 300

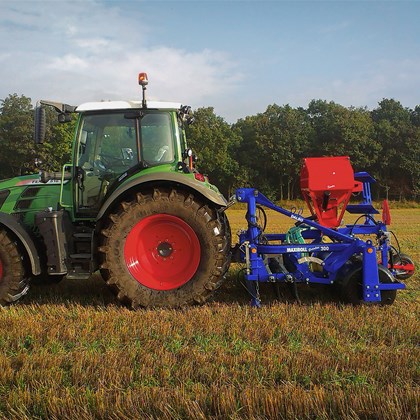

Our mounted MAXIROLL GREENLINE 300 roller is perfect for the care and optimization of grasslands. It is a compact, efficient and easy to handle 3.00 m roller. It is available in many combinations for handling any task such as levelling, root aeration and consolidation of the soil.

IMAG1299.Korrigert. Jpg
Working width
2,80 m
Transport width
3 m
Ring size
50-71 cm
Horsepower
> 80
Weight
1.100-1.760 kg

Technical data

MAXIROLL GREENLINE 300x71 cm ståltromle

Transport width
3,00 m
Working width
2,80 m
Weight (with water)/ number of rings
1.100 kg (2.000 kg)
Pull (suspension)
Cat. 2/3

MAXIROLL GREENLINE 300x50 cm Cross Combi

Transport width
3,00 m
Working width
2,80 m
Weight (with water)/ number of rings
1.570 kg/46 pcs.
Pull (suspension)
Cat. 2/3

MAXIROLL GREENLINE 300x55 cm Cross Combi

Transport width
3,00 m
Working width
2,80 m
Weight (with water)/ number of rings
1.760 kg/46 pcs.
Pull (suspension)
Cat. 2/3

MAXIROLL GREENLINE 300x50 cm SNOWFLAKE®

Transport width
3,00 m
Working width
2,80 m
Weight (with water)/ number of rings
1.510 kg/53 pcs.
Pull (suspension)
Cat. 2/3

MAXIROLL GREENLINE 300x55 cm SNOWFLAKE®

Transport width
3,00 m
Working width
2,80 m
Weight (with water)/ number of rings
1.750 kg/53 pcs.
Pull (suspension)
Cat. 2/3
IMAG1299.Korrigert. Jpg
Concept

MAXIROLL GREENLINE 300 is a fantastic machine for maintenance and optimization of existing grass areas

It is also possible to mount a P-box-SpeedTronic STI seeder, so that grass and other seeds can be sown under the roller, which saves an extra pass and valuable time.

Most MAXIROLL GREENLINE rollers are equipped with a front frame that houses a 2-row harrow with 12 mm tines. These tines aerate and lift up dead grass.

A cracker board or a molehill board can also be mounted in front, which helps to level and thus prepare the ground for the roller section. Two types of roller rings, can be mounted SNOWFLAKE®, Cross Combi as well as our special steel roller with 710 mm in diameter that can be filled with water for increased ground pressure.

This roller is particularly suitable for working on existing grasslands where efficient consolidation and stone suppression, with a completely flat surface is desired.

Standardudstyr

MAXIROLL GREENLINE lift 300 standard equipment

  • Strong frame made of quality steel and high-tensile steel.
  • Jack.
  • Prepared for sowing equipment.
  • Linkage cat. 2/3.
Dalbo Maxiroll Greenline Lift Mulvarpeplanke

Molehill board

Mechanically adjustable molehill board, primarily designed to increase roller performance when clearing, rolling and tending grasslands.

The molehill board working in conjunction with 2 rows of harrow tines, which can be manually adjusted to make more or less aggressive.

Dalbo Maxiroll Greenline Lift Saaudstyr

Sowing equipment

If you are looking for an ideal solution for the care of grasslands and sowing of subsequent crops, our sowing equipment will help you save precious time and increase efficiency.

Dalbo Maxiroll Greenline Lift Strigle

Harrow

We offer a 2-row harrow with 12 mm tines that allows perfect root aeration and tears up dead grass, which speeds up the germination of new grass.

Dalbo Maxiroll Greenline Lift Lamelplanke Striglemombination

Cracker board

Mechanically adjustable cracker board, consisting of strong 80 mm spring tines with 100 x 12 mm angled wearing points, which makes it perfect for levelling the soil, thus leaving the soil in perfect condition for the roller section.

The working angle of the cracker board is mechanically preset via spindles.

IMG 0994

Cracker board/harrow combination

A cracker board/harrow combination is a fantastic tool for maintaining existing grass areas as well as for establishing new ones.

The mechanically adjustable cracker board complements the 2-row harrowing tool with 12 mm tines and ensures an even and well aerated grass field.

Accessories and extra equipment

  • Lift censor
  • LED lighting
  • Mole hill board
  • Platform for seeder
  • Cracker board
  • Harrow
  • DALBO seeder
  • Mounting kit for sowing equipment
  • Radar with speed sensor
