TRIMAX lift 300-520

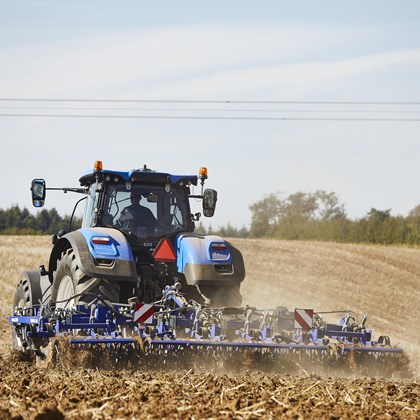

The TRIMAX stubble cultivator is known for its impressive mixing effect of stubble and soil while providing a nice and level seedbed finish to make the following work easier. The TRIMAX is ground-breaking in that it has the largest ground clearance on the market at 90 cm and a unique 3D stone protector developed by DALBO.
Technical data
TRIMAX 300 shear bolt
TRIMAX 300 NSH lift
TRIMAX 410 NSH lift
TRIMAX 410 NSH lift foldable
TRIMAX 520 NSH lift foldable
Concept
Our mounted TRIMAX is the perfect solution for farms of any size

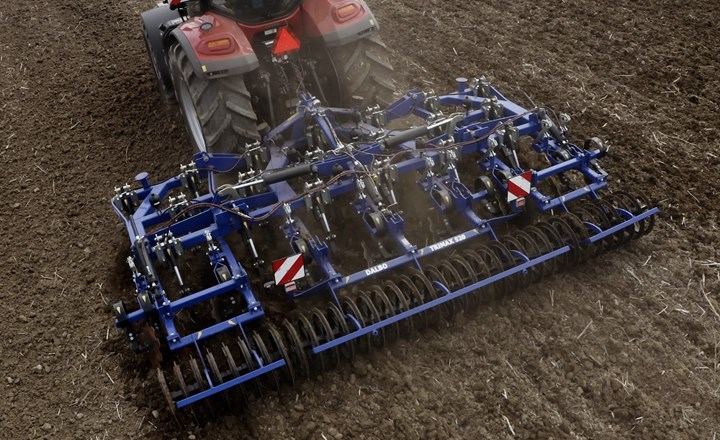

It is equipped with a very robust and high frame construction, which makes working in stubble fields with a large amount of straw easier, as the harrow does not get blocked.
It is also excellent for breaking through ploughed soil when allowed to work at depth. The TRIMAX NSH is equipped with specially designed 3D hydraulically sprung tines, which protect the frames and other mechanical parts of the harrow. After the tines, the ground is levelled
off by means of spring-suspended serrated discs. These are
mechanically adjusted and leave a level surface after the harrow tines.

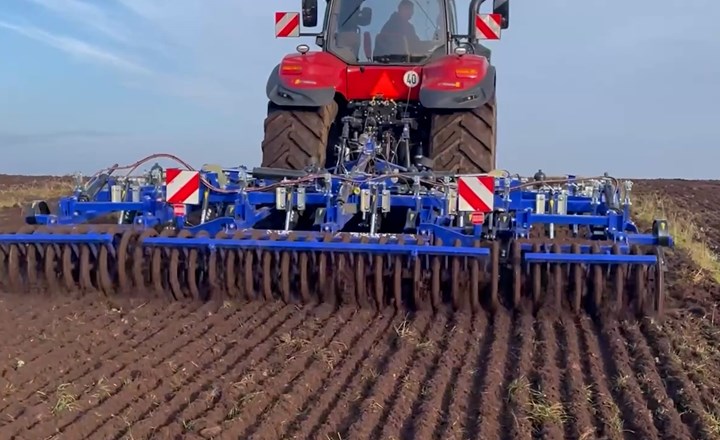

Finally, there is a Ø600 mm T-ring cage roller, which crushes the clods left by the cultivator and supports its weight.
The power requirement depends on the depth of the harrow and soil type.
A power requirement of approx. 50 hp per metre working width is recommended for cultivating at a speed of 8-12 km per hour under normal soil conditions, but less will be needed when normal stubble cultivating on light soils is carried out.
Standard equipment
TRIMAX standard equipment
-
Fully hydraulic folding and unfolding of sections. Switching from
driving on roads to field operation without leaving the tractor. -
LED lighting.
-
Tine spacing 275 mm.
-
50 x 20 reversible points.
-
Mixing disc incl. side disc.
-
Ø600 T-ring packer.
- 3D stone protection or shear bolt
-
Ground clearance 90 cm.
-
Strong frames made of quality steel and high-tensile steel.
Hydraulic 3D stone protection
The TRIMAX is equipped with specially designed 3D hydraulically sprung tines.
These are located with a tine spacing of 275 mm, which is distributed over 3 rows and with 70 cm between the rows.
The 3D stone protection ensures that the tines are protected when in contact with stones and helps relieve heavy loads on the harrow’s frame construction and other mechanical parts.
The 3D stone protection allows the tine to move 40 cm up and 15 cm to the side when driving over larger stones, and the system is built on a rotating bracket with discs springs and a hydraulic cylinder.
Hydraulic depth adjustment
Hydraulic depth adjustment ensures optimal cultivation over the entire field, as the depth of the harrow is continuously adjusted according to the condition of the field.
The bearing cage roller is adjusted steplessly from inside the tractor, which also helps optimise fuel consumption, as the working depth can
be adjusted according to the requirements of the field.
Accessories and extra equipment
- Wing share
- Hydraulic depth adjustment, standard on TRIMAX 520
- 1-row harrow
- Electronic depth scale
- DALBO seeder for subsequent crops
- Tines with hard metal coating
