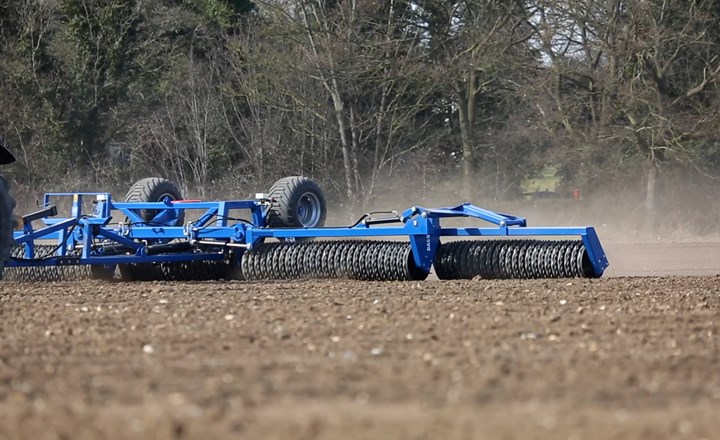

POWERROLL 5-section 1030-1830

Our POWERROLL series are high-capacity rollers designed for medium and large farms. With our innovative features and with a wide range of roller rings, a POWERROLL provides perfect rolling across seasons and applications.

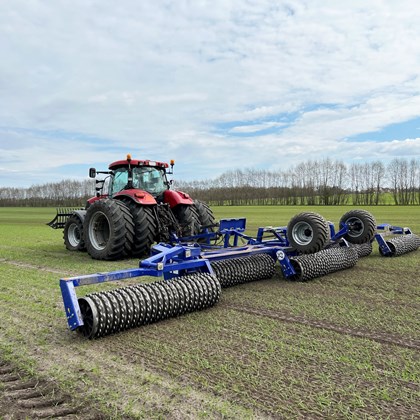

4 Redigeret
Working width
10,30-18,30 m
Transport width
3 m
Ring size
50-62 cm
Horsepower
> 110
Weight
5.810-12.745 kg
POWERROLL

DALBO POWERROLL

POWERROLL Talkover

DALBO POWERROLL presentation

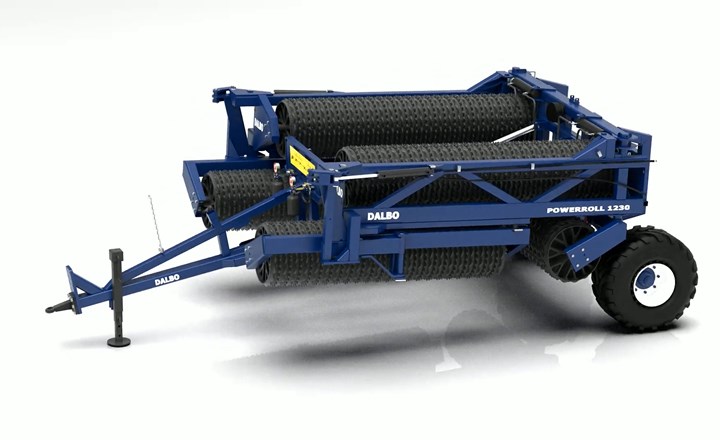

POWERROLL 1230

POWERROLL 1230 animation

Technical data

POWERROLL 1030

SNOWFLAKE® 50 cm weight/number of rings
6.280 kg/209 pcs.
SNOWFLAKE® 55 cm weight/number of rings
7.270 kg/209 pcs.
SNOWFLAKE® 60 cm weight/number of rings
8.250 kg/209 pcs.
SNOWFLAKE® 62 cm weight/number of rings
-
Crosskill 53 cm weight/number of rings
5.810 kg/107 pcs.
Crosskill 60 cm weight/number of rings
6.900 kg/107 pcs.
Cross Combi 50 cm weight/number of rings
6.790 kg/186 pcs.
Cross Combi 55 cm weight/number of rings
7.180/186 pcs.
Min. power requirements
110 HP
Hydraulic connections
3xDA
Transport width
3,00 m
Wheels
400/60x15,5 Twin

POWERROLL 1100

SNOWFLAKE® 50 cm weight/number of rings
6.565 kg/223 pcs.
SNOWFLAKE® 55 cm weight/number of rings
7.630 kg/223 pcs.
SNOWFLAKE® 60 cm weight/number of rings
8.670 kg/223 pcs.
SNOWFLAKE® 62 cm weight/number of rings
-
Crosskill 53 cm weight/number of rings
6.045 kg/180 pcs.
Crosskill 60 cm weight/number of rings
7.245 kg/180 pcs.
Cross Combi 50 cm weight/number of rings
6.360 kg/196 pcs.
Cross Combi 55 cm weight/number of rings
7.420 kg/196 pcs.
Min. power requirements
125 HP
Hydraulic connections
3xDA
Transport width
3,00 m
Wheels
480/45x17

POWERROLL 1230

SNOWFLAKE® 50 cm weight/number of rings
6.955 kg/249 pcs.
SNOWFLAKE® 55 cm weight/number of rings
8.120 kg/249 pcs.
SNOWFLAKE® 60 cm weight/number of rings
9.300 kg/248 pcs.
SNOWFLAKE® 62 cm weight/number of rings
9.910/248 pcs.
Crosskill 53 cm weight/number of rings
6.165 kg/127 pcs.
Crosskill 60 cm weight/number of rings
7.840 kg/127 pcs.
Cross Combi 50 cm weight/number of rings
6.970 kg/208 pcs.
Cross Combi 55 cm weight/number of rings
8.550/208 pcs.
Min. power requirements
140 HP
Hydraulic connections
3xDA
Transport width
3,00 m
Wheels
480/45x17 Twin/ 520/50 x17 Twin

POWERROLL 1350

SNOWFLAKE® 50 cm weight/number of rings
8.650 kg/271 pcs.
SNOWFLAKE® 55 cm weight/number of rings
9.850 kg/271 pcs.
SNOWFLAKE® 60 cm weight/number of rings
10.690 kg/271 pcs.
SNOWFLAKE® 62 cm weight/number of rings
-
Crosskill 53 cm weight/number of rings
-
Crosskill 60 cm weight/number of rings
-
Cross Combi 50 cm weight/number of rings
-
Cross Combi 55 cm weight/number of rings
-
Min. power requirements
150 HP
Hydraulic connections
4xDA
Transport width
3,00 m
Wheels
600/50x22,5 Twin

POWERROLL 1430

SNOWFLAKE® 50 cm weight/number of rings
8.950 kg/287 pcs.
SNOWFLAKE® 55 cm weight/number of rings
10.250 kg/287 pcs.
SNOWFLAKE® 60 cm weight/number of rings
11.240 kg/287 pcs.
SNOWFLAKE® 62 cm weight/number of rings
-
Crosskill 53 cm weight/number of rings
8.900 kg/145 pcs.
Crosskill 60 cm weight/number of rings
9.410 kg/145 pcs.
Cross Combi 50 cm weight/number of rings
9.080 kg/240 pcs.
Cross Combi 55 cm weight/number of rings
10.230/240 pcs.
Min. power requirements
170 HP
Hydraulic connections
4xDA
Transport width
3,00 m
Wheels
600/50x22,5 Twin

POWERROLL 1530

SNOWFLAKE® 50 cm weight/number of rings
9.505 kg/307 pcs.
SNOWFLAKE® 55 cm weight/number of rings
10.790 kg/307 pcs.
SNOWFLAKE® 60 cm weight/number of rings
11.850 kg/307 pcs.
SNOWFLAKE® 62 cm weight/number of rings
-
Crosskill 53 cm weight/number of rings
8.980 kg/153 pcs.
Crosskill 60 cm weight/number of rings
10.010 kg/153 pcs.
Cross Combi 50 cm weight/number of rings
9.720 kg/256 pcs.
Cross Combi 55 cm weight/number of rings
10.750 kg/256 pcs.
Min. power requirements
190 HP
Hydraulic connections
4xDA
Transport width
3,00 m
Wheels
600/50x22,5 Twin

POWERROLL 1630

SNOWFLAKE® 50 cm weight/number of rings
9.980 kg/325 pcs.
SNOWFLAKE® 55 cm weight/number of rings
11.380 kg/325 pcs.
SNOWFLAKE® 60 cm weight/number of rings
12.975 kg/325 pcs.
SNOWFLAKE® 62 cm weight/number of rings
-
Crosskill 53 cm weight/number of rings
9.430 kg/163 pcs.
Crosskill 60 cm weight/number of rings
10.580 kg/163 pcs.
Cross Combi 50 cm weight/number of rings
10.130 kg/268 pcs.
Cross Combi 55 cm weight/number of rings
11.310 kg/268 pcs.
Min. power requirements
210 HP
Hydraulic connections
4xDA
Transport width
3,00 m
Wheels
600/50x22,5 Twin

POWERROLL 1830

SNOWFLAKE® 50 cm weight/number of rings
11.170 kg/364 pcs.
SNOWFLAKE® 55 cm weight/number of rings
12.745 kg/362 pcs.
SNOWFLAKE® 60 cm weight/number of rings
-
SNOWFLAKE® 62 cm weight/number of rings
-
Crosskill 53 cm weight/number of rings
10.550 kg/182 pcs.
Crosskill 60 cm weight/number of rings
12.080 kg/182 pcs.
Cross Combi 50 cm weight/number of rings
11.350 kg/298 pcs.
Cross Combi 55 cm weight/number of rings
12.650 kg/298 pcs.
Min. power requirements
230 HP
Hydraulic connections
4xDA
Transport width
3,00 m
Wheels
600/50x22,5 Twin

Dalbo Powerroll
Concept

POWERROLL is a fully hydraulic roller for modern farmers that places high demands on quality, durability and efficiency

The POWERROLL series is the market’s most compact roller in its category, and despite its large working widths, it can be folded to a transport width of only 3 m, which makes the journey to and from the field easy and safe.

The entire folding and unfolding of the roller sections can be done from inside the tractor and without the need for further manoeuvring, which is both practical and safe.

POWERROLL is suitable for driving on all soil types and all types of farms. The best possible field contact is ensured over the entire working width of the roller by means of the recognized hydraulic weight distribution and the DUOFLEX system, which makes it possible for each section to follow the contour of the field.

On uneven fields, POWERROLL can roll across the entire working width, as the roller sections overlap and provide full-width ground contact, even when turning and working on uneven fields.


In summary, a POWERROLL is a versatile roller of high quality and with a large capacity for all users.

Standard equipment

POWERROLL standard equipment

  • Fully hydraulic folding and unfolding of sections. Switching from
    driving on roads to field operation without leaving the tractor.
  • LED lighting.
  • Ø60 mm shafts made of high-tensile steel.
  • Strong frames made of quality steel and high-tensile steel.
  • Hydraulic weight distribution, that ensures an evenly distributed ground pressure over the entire working width, regardless of the contours of the field.
  • DUOFLEX with individual flexibility between sections.
  • Automatic transport security for optimal safety during
    transport.
  • Hydraulic jack on 1430-1830.
  • Hydraulic brakes on 1430-1830.
  • Strong flange bearings 1030-1230.
  • At least 500 kg per working metre.
  • Rubber suspended bearings on 1430-1830.
Dalbo Powerroll Tromleringe

Roller rings

SNOWFLAKE® is used with free running breaker rings and is suitable for most applications, both before and after sowing. They are especially suitable for rolling after sowing as well as for the care of established pastures

The Cross Combi rings are very suitable for seedbed preparation and leave the soil firm with a slightly loose surface. In conjunction with a cracker board (POWERROLL 1030 and 1230 only), these rings will effectively crush, level and pack the clods and heavy soil.

The Crosskill ring type is used primarily for seedbeds and leaves the soil loose at the top and firmer just below the surface, which is optimal for sowing.

Dalbo Powerroll Lamelplanke

Cracker board

Hydraulically operated and adjustable cracker board, consisting of strong 80 mm spring tines with 200 x 12 mm angled wearing points, which makes it perfect for crushing clods and levelling the soil, thus leaving the soil loose, smooth and in perfect condition for the roller section.

The cracker board can be mounted by DALBO before delivery, but can also be retrofitted. When using the POWERROLL for rolling, the cracker board can be lifted hydraulically out of work, providing increased usability and versatility.

The cracker board requires two extra double-acting hydraulic outlets on the tractor, and to achieve optimal working conditions for, and thus effect of, the cracker board, we recommend a working speed of 8-10 km/h.

Dalbo Powerroll Saaudstyr

Sowing equipment

If you are looking for an ideal solution for the care of grasslands, sowing of subsequent crops and the like, it is possible to equip POWERROLL with sowing equipment and thus increase the efficiency in the field, as you can save a pass

Accessories and extra equipment

  • Air brakes or hydraulic brakes
  • Stone trays 45L or 100L
  • Hydraulic jack
  • Bracket for slug pelleter
  • Wheel upgrade
  • DALBO seeder for 1230
  • Pre emergence marker kit for 1230-1830
  • Hydraulics for Rotoseeder fittings
