MAXIROLL GREENLINE 3-SECTION 630-830

Our MAXIROLL GREENLINE 630 and 830 are efficient, high-capacity trailed grass rollers. They are specially designed to perform the best possible care and maintenance of grasslands, from efficient rolling and sowing in one pass to optimal maintenance of existing grasslands and areas.

In short, a GREENLINE roller helps you increase your productivity, your yield, the quality of the field and thus the quality of the feed. This will ultimately mean a better milk quality and thus a higher settlement price.

1
Working width
6,30-8,30 m
Transport width
2,50-3,00 m
Diameter
71 cm
Horespower
> 80
Weight
3.250-7.540 kg

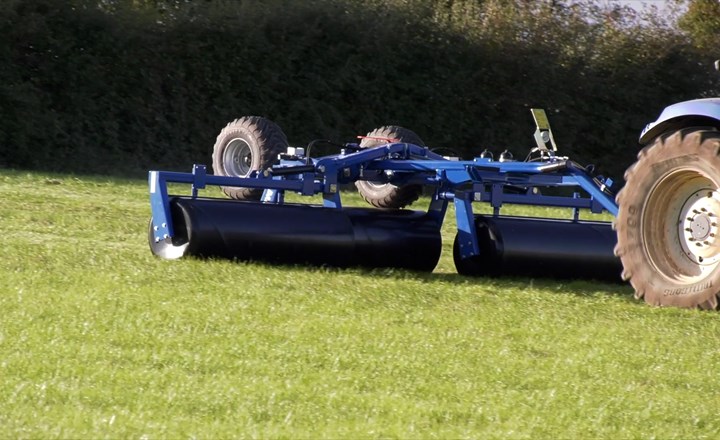

MAXIROLL GREENLINE (1)

DALBO MAXIROLL GREENLINE

Technical data

MAXIROLL GREENLINE 630

Min. power requirements
80 HP
Weight/with water
3.250/5.580 kg
Transport width
2,50 m
Wheels
400/60x15.5
Harrow – weight/number
900 kg/94 pcs.
Molehill board
170 kg
Cracker board − weight/number of tines
785 kg/34 pcs.
Harrow/cracker board
1.415/24 pcs.

MAXIROLL GREENLINE 830

Min. power requirements
100 HP
Weight/with water
4.200/7.540 kg
Transport width
3,00 m
Wheels
400/60x15.5
Harrow – weight/number
1.150 kg/126 pcs.
Molehill board
200 kg
Cracker board − weight/number of tines
1.110 kg/43 pcs.
Harrow/cracker board
1.700/33 pcs.
Greenlinefullreseed S. 40 41
Concept

Our MAXIROLL GREENLINE 630 and 830 are efficient, high-capacity trailed grass rollers. They are specially designed to perform the best possible care and maintenance of grasslands, from efficient
rolling and sowing in one pass to optimal maintenance of existing grasslands and areas

Due to the large overlap between each roller section, optimal rolling is achieved in the entire working width, even when you turn and roll on uneven ground.

Our proven hydraulic weight distribution ensures an evenly distributed weight across all 3 roller sections, and the DUOFLEX system allows the side frames to follow the ground contours individually.

All 3 types of roller rings can be mounted, and for MAXIROLL GREENLINE we also offer our special steel roller with a 710 mm diameter that can be filled with water for increased ground pressure.

This roller is particularly suitable for working on existing grasslands where efficient consolidation and stone suppression is desired.

Standard equipment

MAXIROLL GREENLINE 3-section standard equipment

  • Fully hydraulic folding and unfolding of sections. Switching from
    driving on roads to field operation without leaving the tractor.
  • LED lighting.
  • Ø60 mm shafts made of high-tensile steel.
  • Strong frames made of quality steel and high-tensile steel.
  • Strong flange bearings.
  • Hydraulic weight distribution, that ensures an evenly distributed ground pressure over the entire working width, regardless of the contours of the field.
  • DUOFLEX with individual flexibility between sections.
  • Automatic transport security for optimal safety during transport.
  • Detachable support jack.
  • Up to 900 kg per working metre.
  • Hydraulic connections: 1xDA and 1xSA.
Greenline

Ballast roller

The roller has as standard Ø710 mm steel rollers with a wall thickness of 10 mm, which is good for levelling and caring for grass areas.

The curved edges on the ballast drum roller ensures a smooth finish especially when turning at a headland.

Dalbo Maxiroll Greenline 3 Delt Muldvarteplanke

Mole hill board

Mechanically adjustable mole hill board, primarily designed to increase roller performance when clearing, rolling and tending grasslands.

Dalbo Maxiroll Greenline 3 Delt Saaudstyr

Sowing equipment

If you are looking for an ideal solution for the care of grasslands and sowing of subsequent crops, our sowing equipment will help you save precious time and increase efficiency.

The seeder is available in 300L or 500L, with the option of either a electric or hydraulic fan. The seeder can be mounted at the rear of the GREENLINE or at the front on the drawbar.

Dalbo Maxiroll Greenline 3 Delt Lamelplanke

Cracker board

Mechanically adjustable cracker board, consisting of strong 80 mm spring tines with 100 x 12 mm angled wearing points, which makes it perfect for levelling the soil, leaving it in perfect condition for the roller section.

The working angle of the cracker board is mechanically preset via spindles.

Dalbo Maxiroll Greenline 3 Delt Lamelplanke Striglekombination

Cracker board/harrow combination

A cracker board/harrow combination is a fantastic tool for maintaining existing grass areas as well as for establishing new ones.

The mechanically adjustable cracker board complements the 2-row harrowing attachment with 12 mm tines and ensures full mulching throughout the working width of the machine.

Each section has its own manually adjustable support wheel which is follows the contours of the ground.

Accessories and extra equipment

  • Air brakes or hydraulic brakes
  • Hydraulic cracker board
  • High pull, drawbar or Scharmüller ball hitch
  • Mole hill board
  • Harrow
  • DALBO seeder
