CULTILIFT 300-800

CULTILIFT is a heavy-duty mounted seedbed cultivator designed for cost-effective seedbed preparation. The standard configuration includes a mechanically adjustable levelling board, a 4-row harrow section and a depth adjustment roller at the rear.

This provides an optimal combination of levelling, harrowing and consolidating for subsequent sowing.

DJI 0049
Working width
3,00-8,00 m
Transport width
3,00 m
Working depth
3-15 cm
Horsepower
> 80
Weight
1.280-2.975 kg
Cultlift V3 Dansk.00 00 29 20.Still001

DALBO CULTILIFT

Technical data

CULTILIFT 300

Working width
3,00 m
Transport width
3,00 m
Number of tines
37 pcs.
Weight
1.210 kg
Min. power requirements
80 HP

CULTILIFT 500

Working width
5,00 m
Transport width
3,00 m
Number of tines
62 pcs.
Weight
2.225 kg
Min. power requirements
110 HP

CULTILIFT 600

Working width
6,00 m
Transport width
3,00 m
Number of tines
75 pcs.
Weight
2.500 kg
Min. power requirements
140 HP

CULTILIFT 700

Working width
7,00 m
Transport width
3,00 m
Number of tines
87 pcs.
Weight
2.775 kg
Min. power requirements
150 HP

CULTILIFT 800

Working width
8,00 m
Transport width
3,00 m
Number of tines
99 pcs.
Weight
2.975 kg
Min. power requirements
180 HP
IMG 0973
Concept

Our CULTILIFT is a good choice for seedbed preparation on small and medium-sized farms with all soil types

It is manufactured in the well-known DALBO quality and offers great value for money.

Our mounted seedbed cultivator comes with simple and thoroughly tested solutions as standard, which provides an affordable solution and excellent durability. The excellent programme of equipment makes it possible to adapt the CULTILIFT to your specific purpose, which provides you with better value and efficiency.

The various combinations of options allow the individual farmer to easily specify a CULTILIFT to fit their needs and soil type.

Standard equipment

CULTILIFT standard equipment

  • Fully hydraulic folding and unfolding of sections. Switching from
    driving on roads to field operation without leaving the tractor.

  • 4 rows of heavy duty spring tines, with 80 mm spacing and
    350m between each row.
  • Ø400 mm rear cage roller.

  • Front levelling board.
  • Support wheels on CULTILIFT 700 and 800.

  • Strong frames made of quality steel.

O6A5393 Redigeret

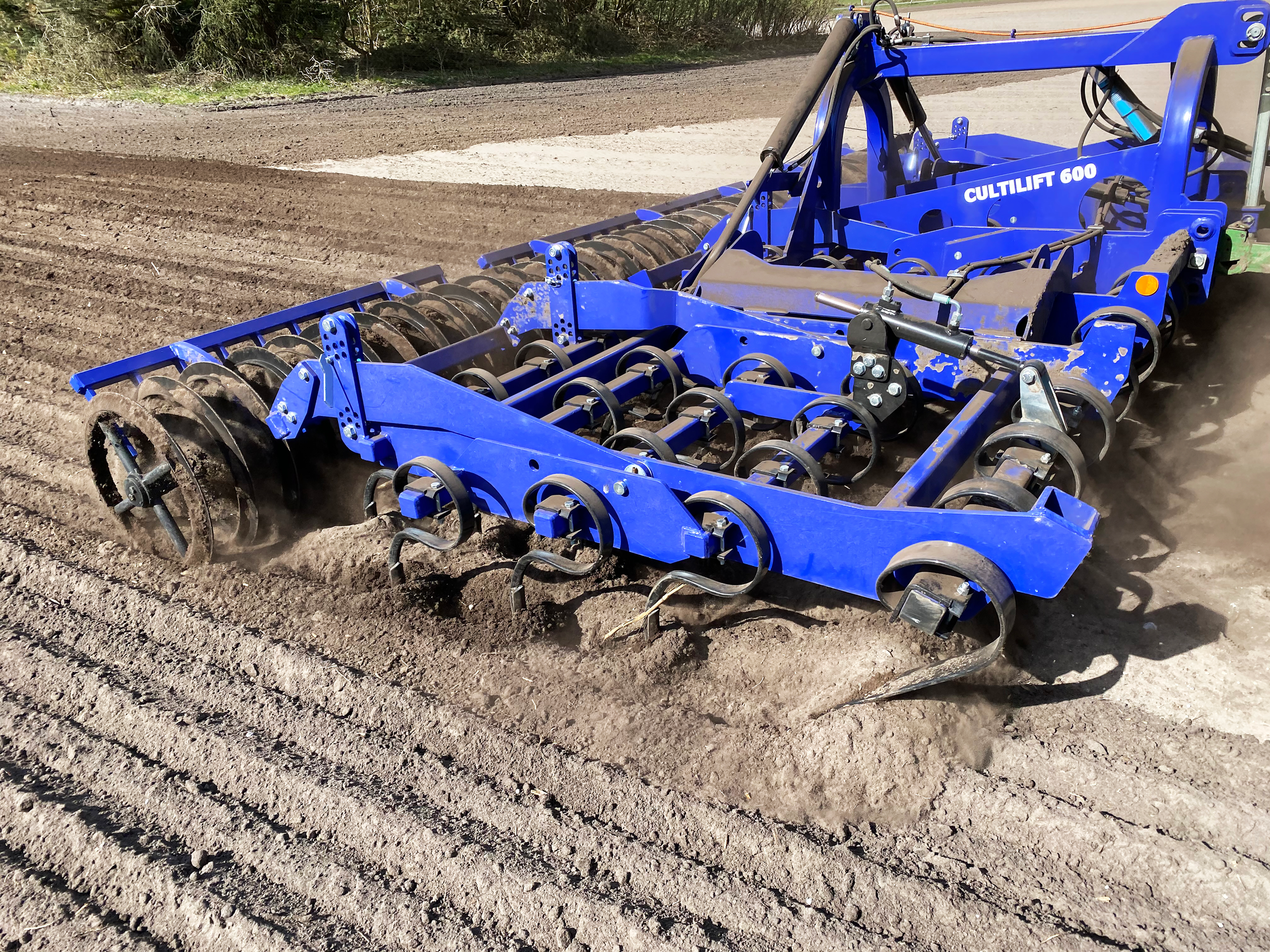

Harrow section

The harrow section on the CULTILIFT consists of 4 rows fitted with S-spring tines as standard.

Tine spacing is 80 mm evenly distributed over the working width and spacing between the rows is 350 mm.

This ensures optimal harrowing and cultivating of soil, as well as a good soil flow in the harrow.

Dalbo Cultilift 600.jpg

Levelling board

The board crushes clods and levels the soil before the harrow sections. This allows the soil to be packed, resulting in evenly leveled soil across the entire working width. You can also fit a full crackerboard and have the option to make it hydraulically adjustable across the entire working width.

FARM7947 Copy

Cage roller

The CULTILIFT is fitted with a cultivation depth roller at the rear. This ensures that the harrow depth is precise and even across the entire working width.

The roller leaves a packed firm base with a porous surface, which creates an optimal foundation for a good seedbed.

Accesories and extra equipment

  • Hydraulic adjustment of the front levelling board

  • Ø500/450 mm Crosskill roller, rear

  • 12 mm rear harrow between the last row of tines and rear roller

  • Levelling board between the last row of tines and rear roller

  • Straight tines, 45 x 10 mm

  • Rear solid bar
  • Support wheels for 600
  • Track eradicators

  • LED lighting

  • Front cracker board

  • Ø600 mm T-rings
